Jinwoo

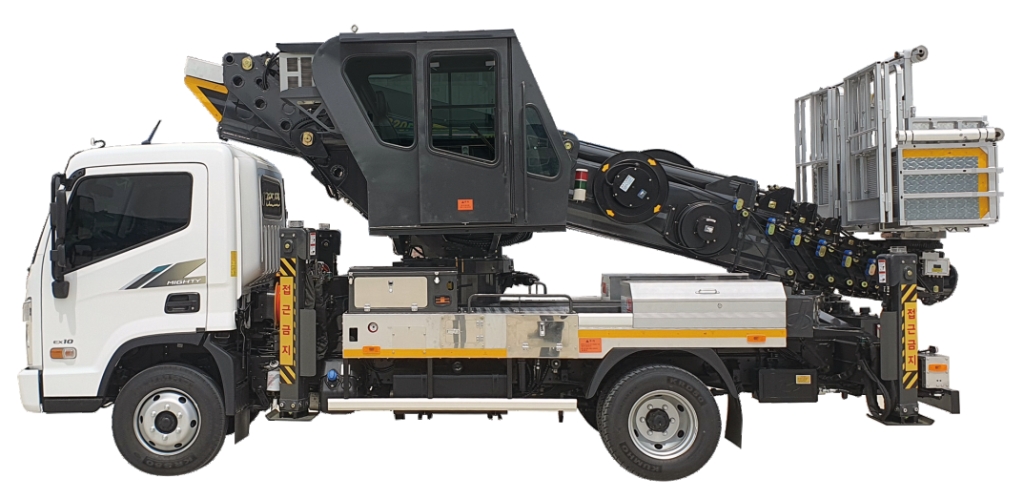

Jinwoo 320
THE HIGHEST SAFETY & ABILITY TO WORK WITH THE CHASSIS (CENTRAL AXIS)
- All-chain type Boom for enhanced safety; minimizing moment as well repairs with zero maintenance.
- High Tensile, special treated Steel Hexadecagon 7 stage Boom (16 edges).
- Increased stability with our patented X-A style Stabilizer (Outrigger) system. – Option of Front Submerged A-type Stabilizer system for longer front area working.
- Compact sized, with least Boom protrusion(67cms) avoiding in-coming vehicles traffic accidents.
- Minimalized Platform moment with large size Ring Gear below Work Platform.
Jinwoo 370J
PROFESSIONAL EQUIPMENT WITH HIGH DURABILITY USING TELESCOPIC & JIB ARTICULATING BOOMS
Jib Articulating Boom is highly flexible because of articulation point for the platform to move up and down; thereby providing greater versatility to reach narrow and confined work area which Telescopic Booms cant approach easily
Jinwoo 400s
- Optimized for the composite & narrow working environment by the strong power compared with product’s size.
- Attached with 8 step auto-transmission of ZF power line.
- Easy working in the narrow area because of mini. extruding (1,270mm) in the side of super-structure column.
- Attached large ring gear in platform for minimizing deviation between left & right.
- Applied all chain for boom’s retraction & extension. Boom type is of 18 edges and 8 booms are interlocked.
- Applied X-A type outrigger (patent) for the sufficient work area.
- Attached large ring gear in turn table for maximizing safety of super-structure.
- Attached invertor & supplementary battery under sub-frame for acquiring max. storage space.

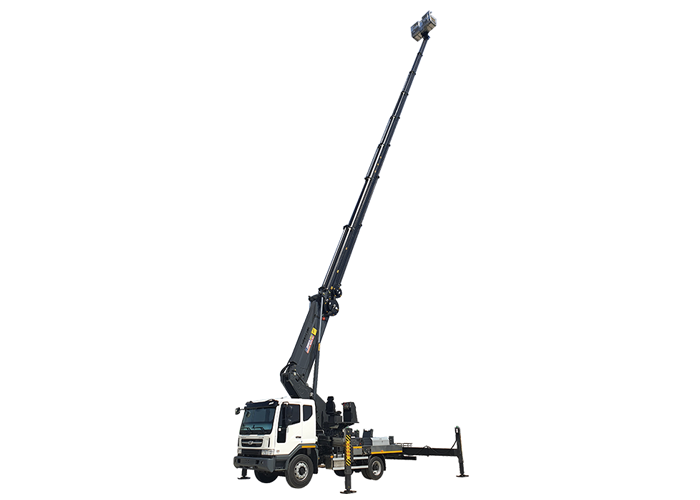

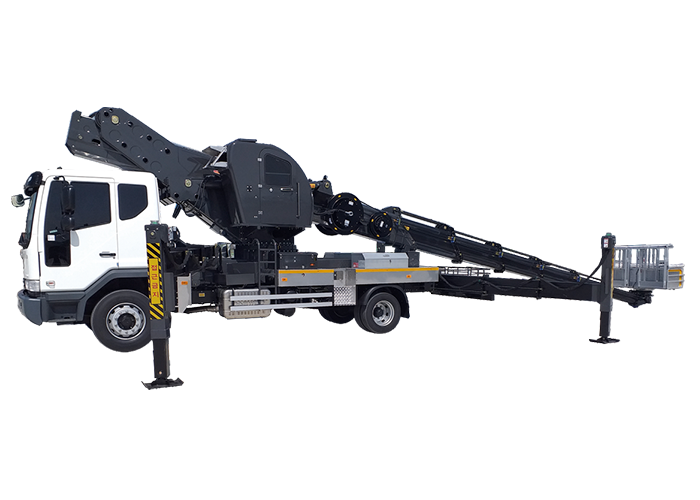

Jinwoo 460I / 450S
HIGHER LEVEL PRODUCT MOUNTED ON THE HIGH LOAD CHASSIS(5 TON)
- 450S compact dual stage Boom model for constrained working areas in urban and megacities.
- All-chain type Boom for enhanced safety; minimizing moment as well repairs with
zero maintenance. - High Tensile, special treated Steel 7 stage Boom (8~16 edges).
- Increased cushion-like effect with special patented X-A style Stabilizer (Outrigger) system.
- Special Heavy payload 500kg Aluminium Platform for higher efficiency & convenience.

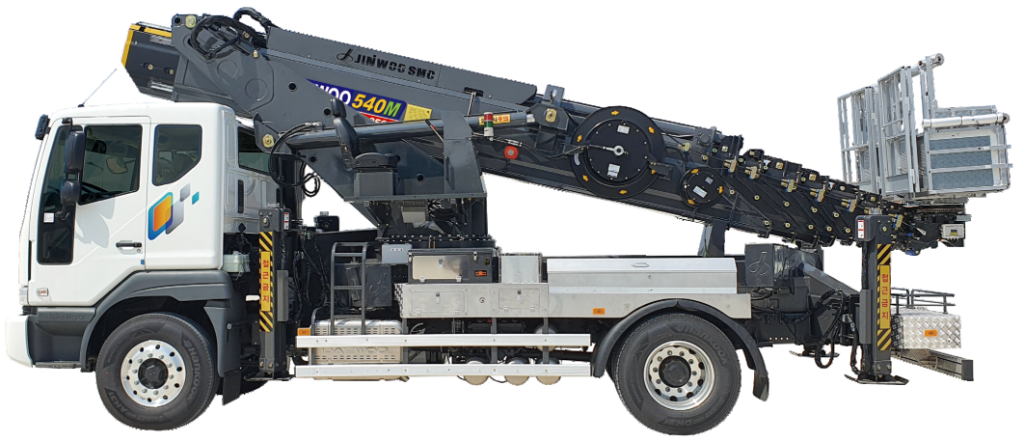

Jinwoo 540M
OPTIMIZED FOR THE NARROW & CONSTRAINED SPACE
- Short span Outrigger extension(1.4m) and compact transport dimension.
- Minimal Boom’s bending as it is produced from high-tensile special treated steel.
- All-chain type Boom operations for enhanced safety & minimal drooping.
- 2-stage Boom extension with program-controlled dual Extension cylinders.
- Minimized moment with enhanced 9-stage cadence Hexadecagon Booms (16 edges).

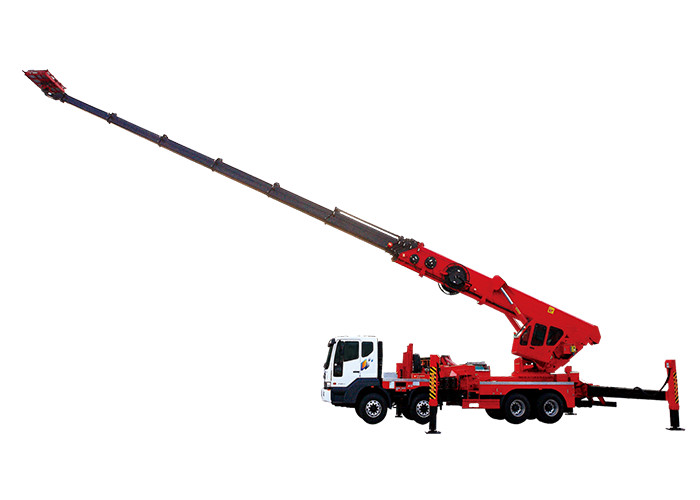

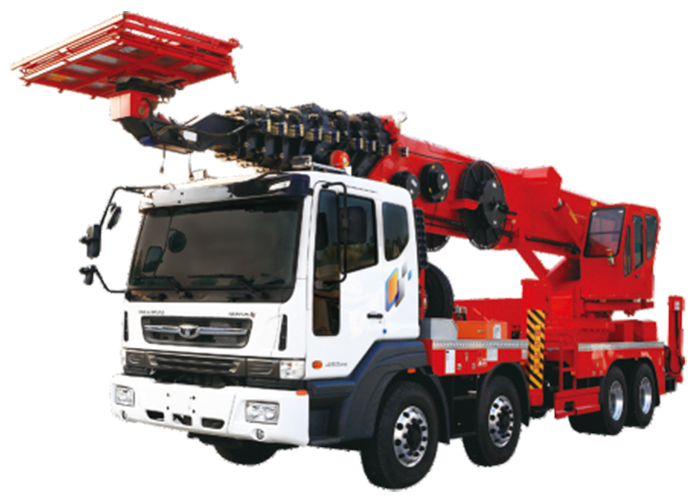

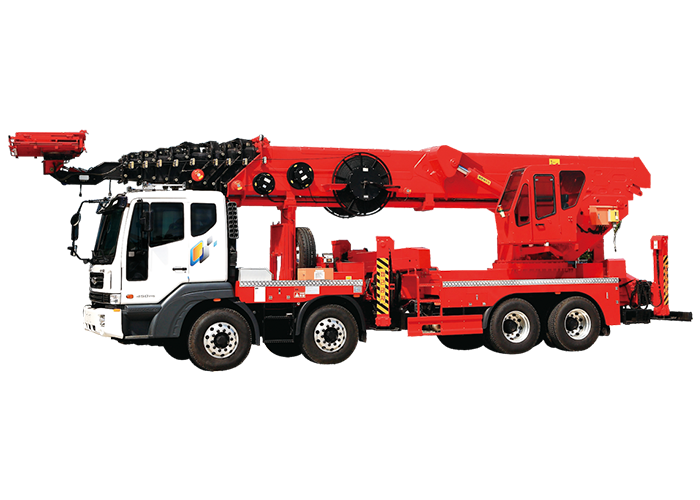

Jinwoo 750
BOOM EXTENSION BY ALL CHAIN TYPE
- Dual stage Auto-program controlled 10 Telescopic Booms for cadence movements and failure-proof enhanced safety.
- Domex 700 Special treated corrosion resistant steel for Booms to minimize drooping/moment.
- All Booms extend and retract by All-Chain mechanism for longevity and almost nil maintenance
